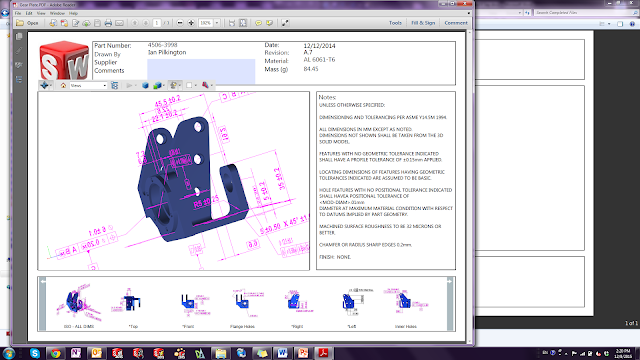

SOLIDWORKS MBD was being introduced since last year to promote drawingless manufacturing. It is an integrated tool for SOLIDWORKS and helps companies define, organize, and publish 3D Product and Manufacturing Information (PMI) including 3D model data in industry standard file format.



In SOLIDWORKS 2016, a few new enhancements make MBD more sophisticated and there are:
  • Dimensioning methodology reduces steps
  • Support for Assembly
  • Support for Tables

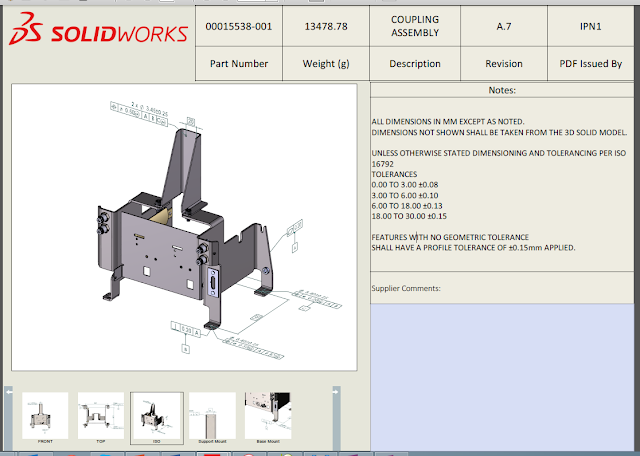

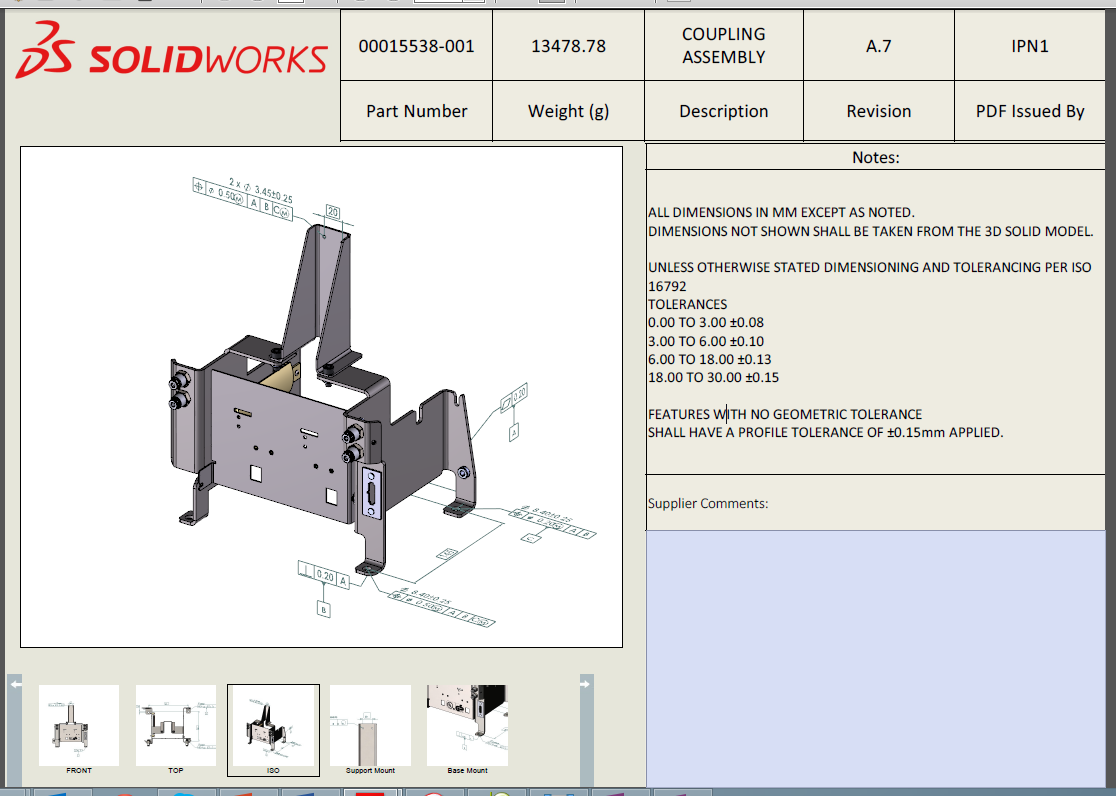

  • Support Multiple sheets & view in PDF

If you wish to know more regarding MBD and its new feature, feel free to contact us.

In case you’ve missed IME’s SWID 2016, we have uploaded the key takeaways and slides HERE. See you next year at IME’s SWID2017!
 #imeswid2016 #ilovesw2016 #imeswid2017
Ken Foong
Senior Data Management Engineer | CSWP-D
