Remember I promise to teach you how to create the softball? Now, here are the steps:

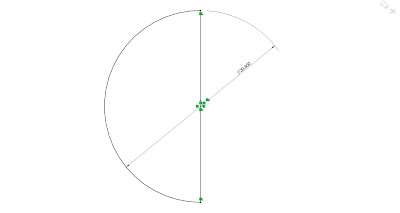

1. Create a semi-circle that looks like this. You can create at any plane you like because a semi-circle will result to a round shape object when you apply the Revolve feature. I dimension this semi-circle with diameter 30.5mm. Don’t forget to pin your geometry to the origin.

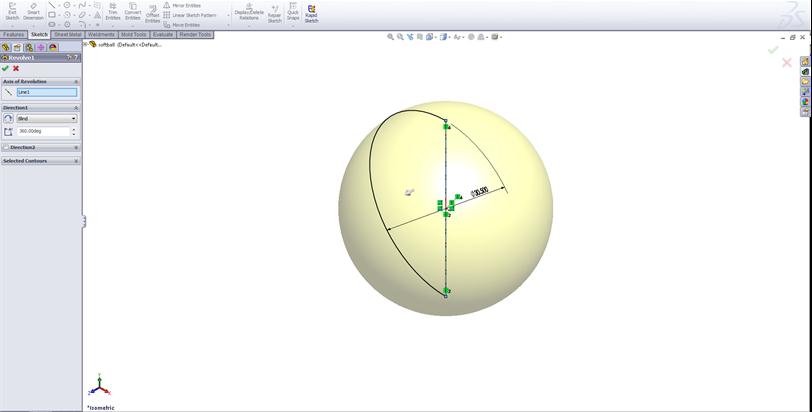

2. Revolve the geometric 360 degree using the Center Line on the semi-circle. The result will appear as a round shape object.
3. Now, a plane is need in certain angle so that the thread can be created at the surface of the ball. In order to create a plane with an angle, an edge or a reference line is needed. Thus, I create a construction line at the Front Plane.

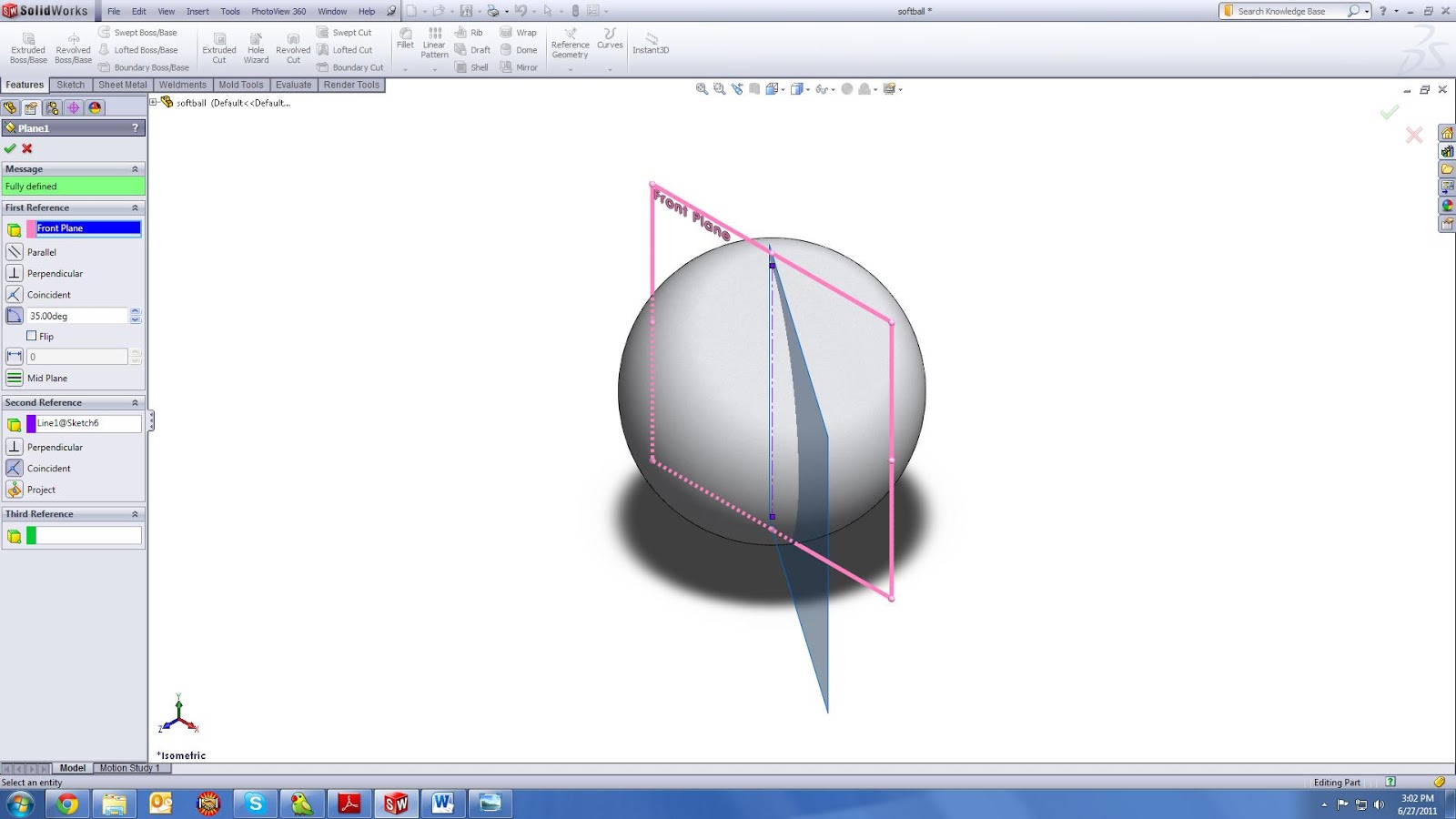

4. Confirm the sketch. Then, go to Features tab and expand Reference Geometry. Select the Plane tool. In Property Manager Tab, select the Front Plane as the First Reference and then select the center line that created earlier to be the Second Reference. For the First Reference, assign the angle 35 degrees while for the Second Reference assigns the coincident.
5. Make this sketch at Plane 1 that had been created earlier. Start from origin.

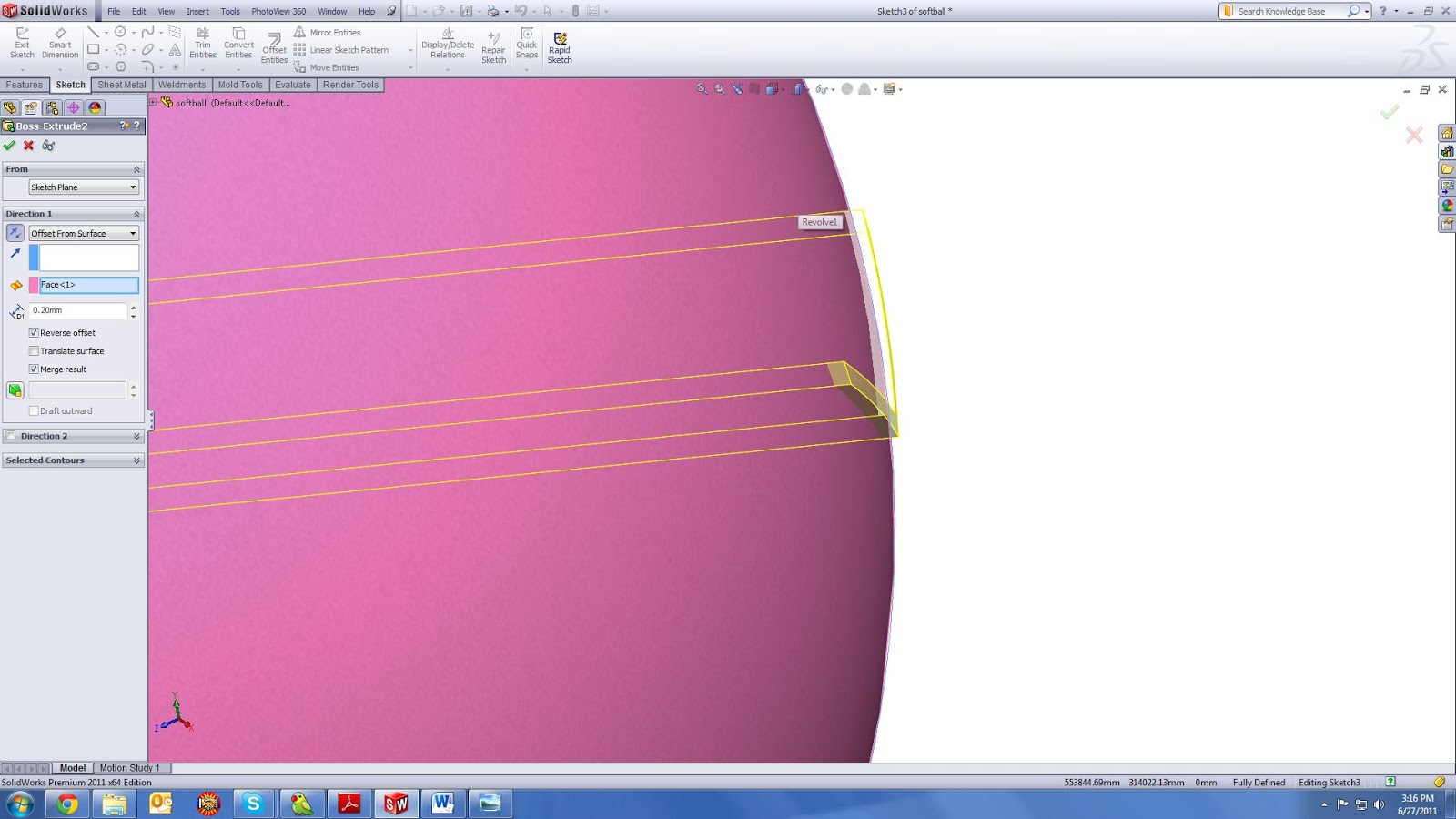

6. Confirm the sketch. From isometric view, clearly the sketch was made at the origin. (It means the sketch is inside the round object!) Now, extrude the sketch so that it would be at the surface of the ball. Go to the Features Tab, Extrude Boss the sketch. Use Offset From Surface end condition for Direction 1 and select the round surface. Then, set the offset dimension to be 0.2mm.
7. The result will appear like this.

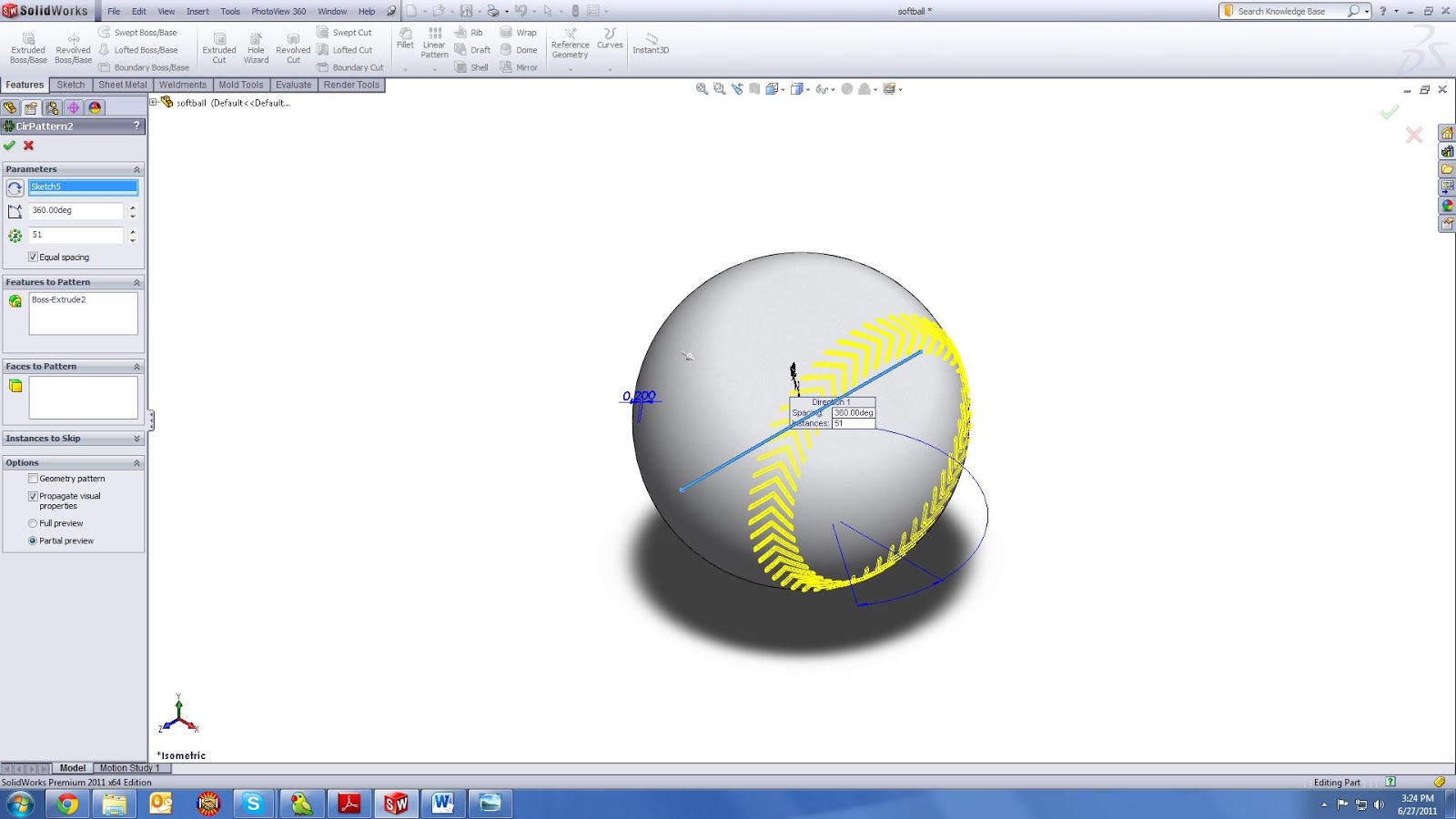

8. Then, pattern the features. Expand the linear pattern from Features Tab and select circular pattern. Then, use the center line that you make to set the angle plane to be the axis of revolution for the pattern. Set the angle to be 360 degrees and pattern the features 51 times. Use equal spacing.

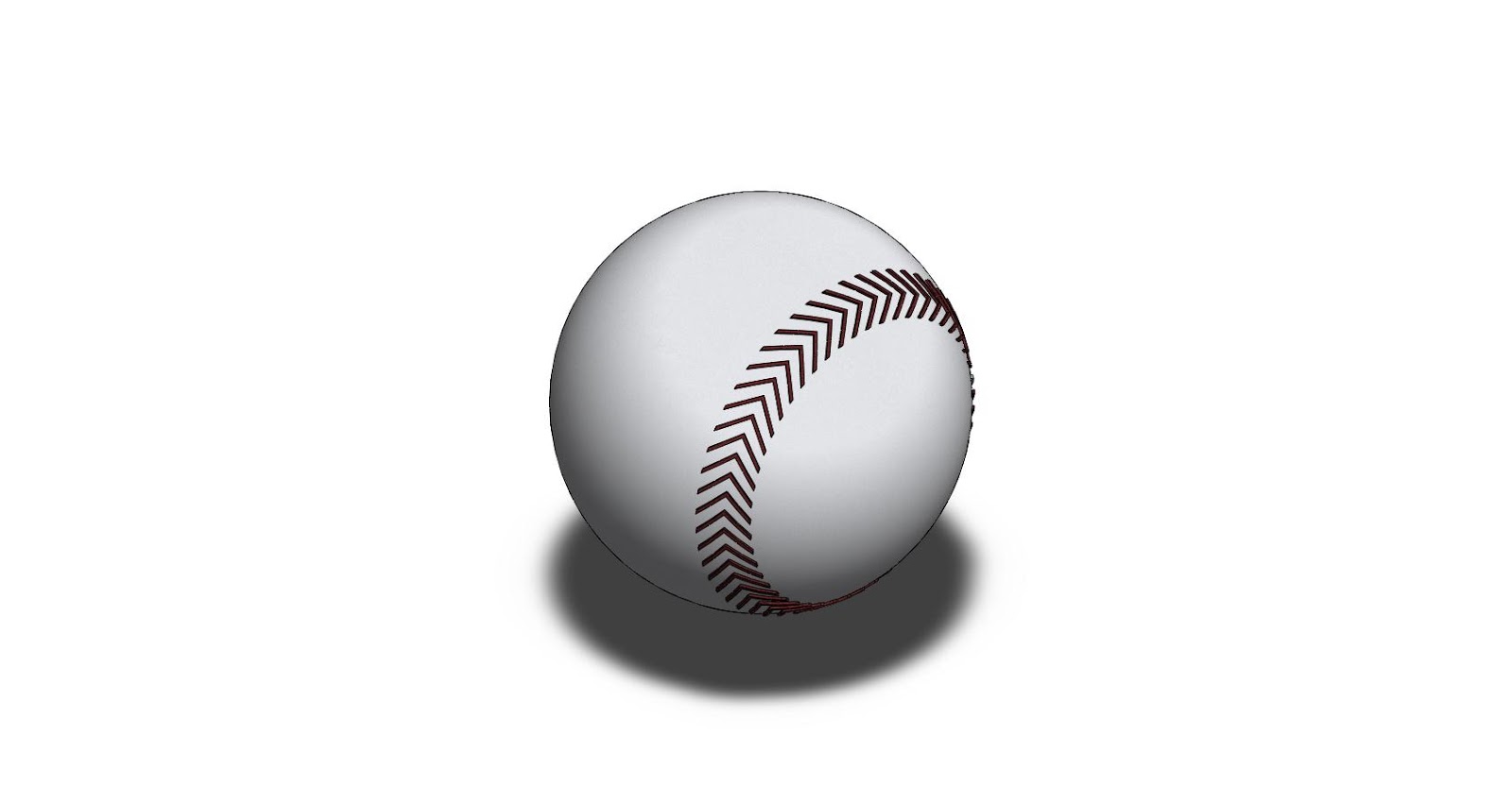

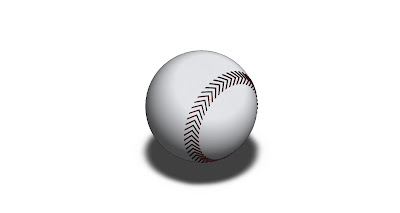

9. The result would be like this. Add different color to the thread features. (Extrude Boss and Circ Pattern)

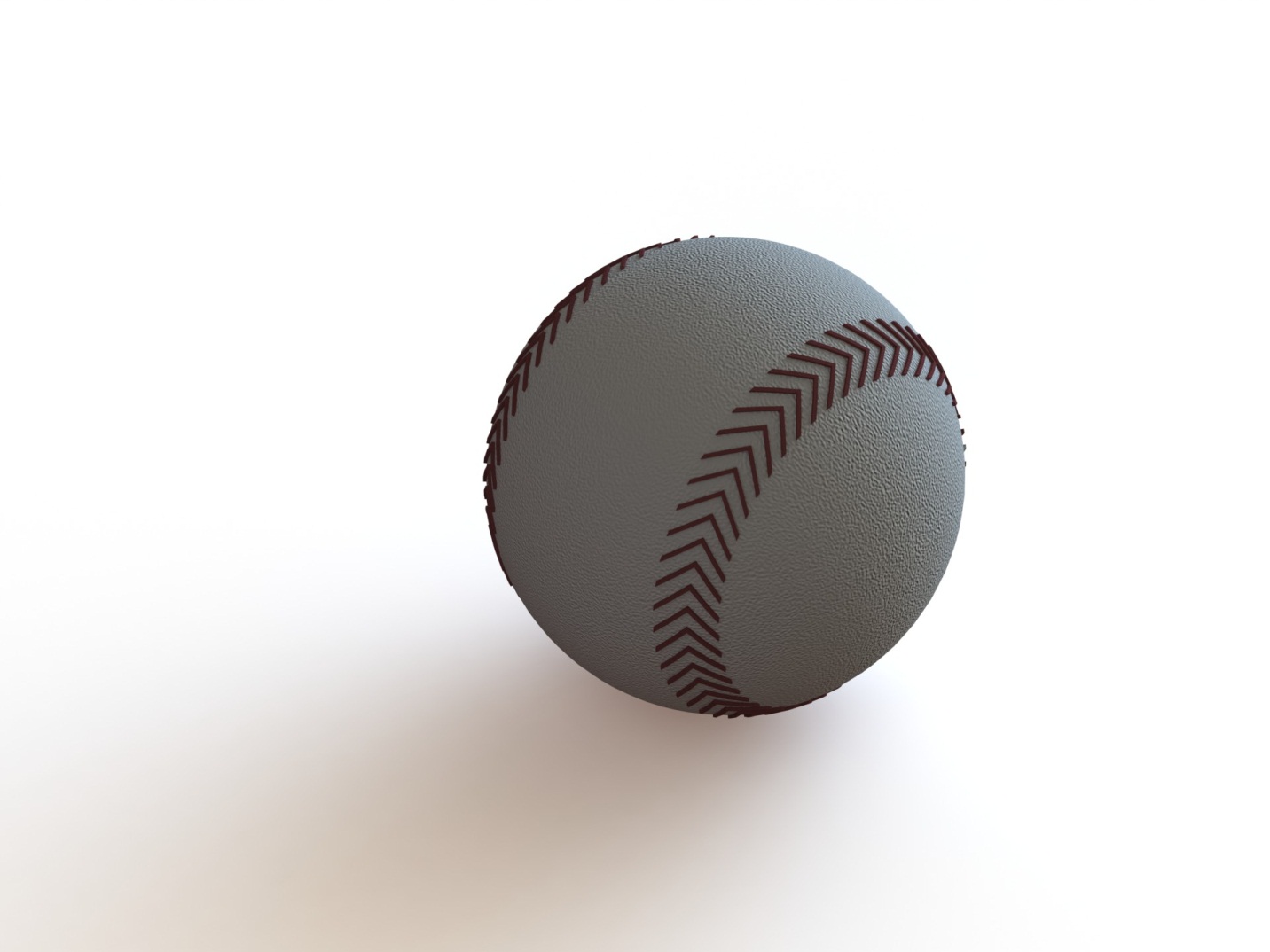

10. Mirror the thread to the other side of the part. Use the Right Plane as Mirror Face/Plane. Select the thread features as the Features to Mirror. This is the end result after I put some rendering to this part. Well, it looks like a real ball to me! Got the ball? Got to try! Have FUN!!
